LK-DS-HES-S ريڊيو الٽيميٽر سموليٽر معياري ڪيس (ڪسٽمائيز ٿيل)
- Wide simulated height range(0 to 22000 above );
- High Directivity Suppression Ratio
- High simulate altimeter accuracy(≥1‰)
- Optional simulate configuration(support more than 210 configurations)
- Manual switch and automatic switch ;
- Volume miniaturization, strong electromagnetic compatibility, high work reliability;
- Multiple control mode:UART, LAN,etc.
- Various standard tests platform interface such as PXI, VXI, LXI.
پيداوار وضاحت
The LK-DS-HES series of radio altimeter simulators represents a specialized class of photoelectric delay systems, meticulously crafted to cater to the intricate demands of radio altimeter simulator development, calibration, and maintenance. These systems are underpinned by the sophisticated technology of fiber-optic delay lines, which utilize optical fibers as the transmission medium and capitalize on the phenomenon of light delay to accurately replicate the spatial propagation of RF microwave signals. This innovative approach allows for the emulation and precise quantification of signal transmission at diverse altitudes.
In contrast to the traditional Surface Acoustic Wave (SAW) delay line systems, the LK-DS-HES series exhibits a suite of enhanced capabilities:
Broad Frequency Bandwidth;Superior Directivity Suppression;Advanced Triple Transit Signal Management:;Extended Service Life Without Recalibration;Optimized Work Reliability;
These advanced features position the LK-DS-HES series as a premier choice for radio altimeter simulator applications, surpassing the performance and reliability of conventional SAW delay line systems.
ٽيڪنيڪل Specifications
Electrical/Optical Characteristics
| سميجي | پيٽرولر جا قدر | يونٽ | تبصرو | ||
| منٽ | عام | وڌ | |||
| فريڪئن جي حد | 4 | - | 4.6 | GHz | |
| Amplitude response | - | ± 1.5 | ± 2 | dB | |
| Simulate height | 1 | - | 22000 | m | قابل اطلاق |
| Simulate height’s accuracy | 0.5٪ | 1% | - | - | |
| وڌ ۾ وڌ ان پٽ | - | 2 | ترتيب | W | مسلسل موج |
| - | 100 | ترتيب | W | Pulse wave | |
| انٽ وي ايس ايس آر | - | 1.3 | 1.5 | - | |
| اوٽ VSWR | - | 1.3 | 1.5 | - | |
| غفلت | - | 50 | - | Ω | |
| Simulate attenuation’s adjustable range | - | 80 | ترتيب | dB | |
| straight suppression ratio | 60 | 80 | - | ڊي بي سي | |
| triple transit signals | نه | ||||
| آپريٽنگ گرمي پد جي حد | -40 | - | 70 + | ℃ | Customized with quality grade |
| Storage Temperature Rang | -55 | - | 85 + | ℃ | |
| Simulate height vs. Temperature | - | - | 7 | ppm/℃ | |
| Simulate accuracy vs. Temperature | - | 3 | 6 | %/℃ | Can be compensated |

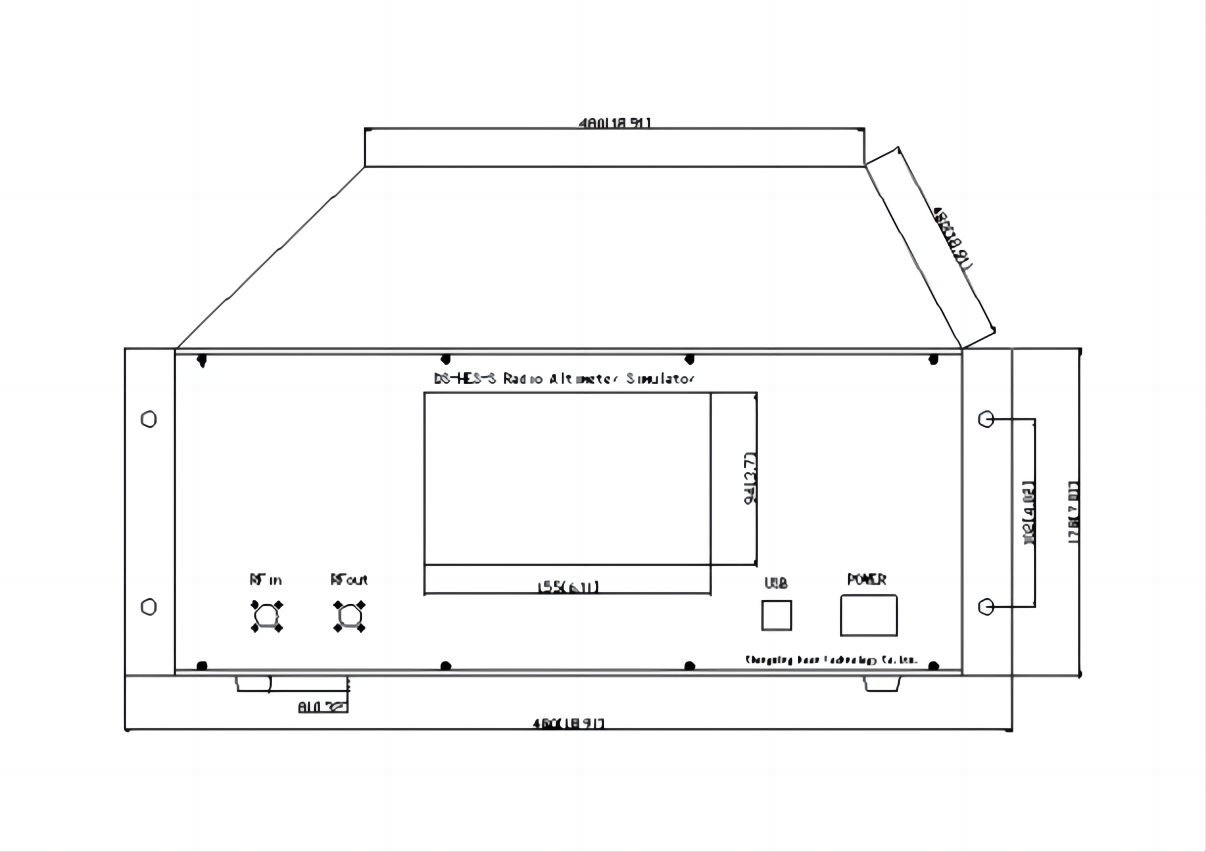

The packages and the pins (Unit: mm[inch])
RF connector：SMA-K（Customized）
DC connector：DE-9PS（Customized）
اپليڪشن
Place: Radio altimeter for radar, AEW, satellite, helicopter and etc
Measure the accurancy of altimeter
Measure the secsiticity of research and tracking
Measurement of other parameters
