NYC10D
NYC10D

LK-NYC10D DML DFB ليزر ماڊل

  • DML DFB Laser Technology
  • ITU-Standard DWDM Wavelength
  • هاءِ ڊائنامڪ رينج
  • Bandwide better than 10GHz
  • Excellent wavelength stability
  • Operate temperature (-40℃～70℃)
انڪوائري

+ 86 29 88244373

پيداوار وضاحت

LK-NYC10D DML Laser Module is an advanced optical transceiver unit, meticulously assembled with a Directly Modulated Laser (DML) Distributed Feedback (DFB) laser, an automatic optical power control circuit, an automatic temperature control circuit, a voltage stabilizing conversion circuit, and a monitoring indication circuit.

This high-speed DML DFB laser is designed to operate within the ITU-standard dense wavelength division multiplexing (DWDM) wavelength spectrum, ensuring compliance with international telecommunications protocols. The modulation bandwidth exceeds 10GHz, facilitating high-speed data transmission capabilities. The module is capable of delivering an output power in excess of 5mW, which is essential for maintaining signal integrity across various network infrastructures.

Powered by a single positive power supply, the LK-NYC10D series module is engineered for stable operation across a voltage range from +7V to +36V. Furthermore, the module is equipped with a functional status indication system that provides real-time feedback on the normalcy of the power supply and optical power output, enhancing system reliability and simplifying diagnostics.

ٽيڪنيڪل Specifications

مطلق وڌ ۾ وڌ درجه بندي

سميجي       نشان منٽ. ٽائيپ. وڌ. يونٽ
اسٽوريج پد Tايس ٽي -55 25 + 85 + ℃
آپريشن پد TC -40 25 + 70 + ℃
آر ايف ان پٽ پاور1 Pin - 10 + 20 + ڊي بي ايم
Voltage Vin +7 12 + 36 + V

(1) Continuous wave (CW)

آپٽيڪل ۽ بجلي جي وضاحت (TC = 22±3℃)

سميجي نشان ٽيسٽ شرط منٽ. ٽائيپ. وڌ. يونٽ تبصرو
Wavelength λ - 1527.99 - 1563.05 nm ITU Standard
فريڪوئنسي (3dB) f3dB S band 0.1 - 3.5 GHz -
C band 0.1   8.5 GHz -
آپٽيڪل آئوٽ پٽ پاور P - 5 10 - mW -
نسبتا شدت شور رين - - - -155 ڊي بي سي/هرٽز -
VSWR VSWR - - - 2
ان پٽ 1 ڊي بي ڪمپريشن - - 13 + 15 + - ڊي بي ايم -

بجلي جي فراهمي (TC = 22±3℃)

سميجي  منٽ. ٽائيپ. وڌ. يونٽ
Voltage +7 12 + 36 + V
موجوده(2) 0.07 0.1 1 A

(2) ٽيسٽ جي حالت: ون = + 12 وي.


● عام ڊيٽا

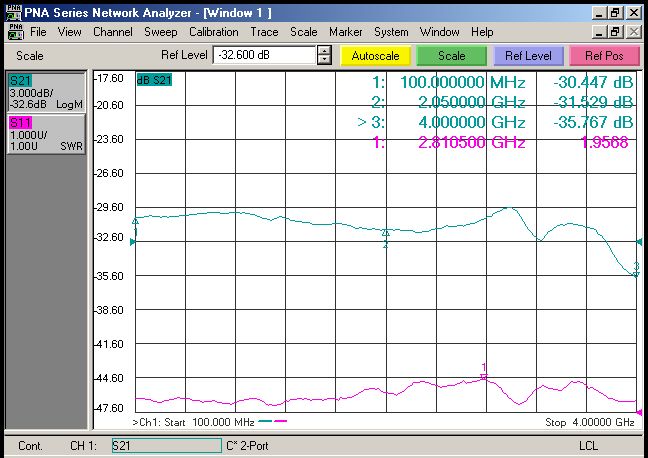

Fig. 1 LK-NYC10D-S DML DFB Laser Typical Frequency Curve

Fig. 2 LK-NYC10D-C DML DFB Laser Typical Frequency Curve


● Typical spectral curve

undefined

Fig. 3 LK-NYC10D DML DFB Laser Typical spectrum Curve


● ماپ يونٽ: ملي ميٽر [انچ]

undefined

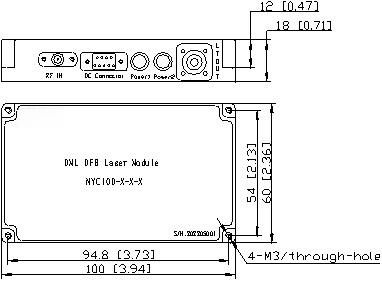

Figure 4 LK-NYC10D DML DBF Laser Module Dimension

آر ايف ڪنيڪٽر: ايس ايم اي

پاور ڪنيڪٽر: J30J-9-ZKP


● Order Information

undefined

شيٽ 1:

ماڊل عام طول موج
S 0.1 ~ 3.5GHz
C 0.1 ~ 8.5GHz

شيٽ 2

نه. تعدد (THz) واھپي جي توان (اينٽر)   نه. تعدد (THz) واھپي جي توان (اينٽر)
C15 191.5 1565.50 C39 193.9 1546.12
C16 191.6 1564.68 C40 194 1545.32
C17 191.7 1563.86 C41 194.1 1544.53
C18 191.8 1563.05 C42 194.2 1543.73
C19 191.9 1562.23 C43 194.3 1542.94
C20 192 1561.41 C44 194.4 1542.14
C21 192.1 1560.61 C45 194.5 1541.35
C22 192.2 1559.79 C46 194.6 1540.56
C23 192.3 1558.98 C47 194.7 1539.77
C24 192.4 1558.17 C48 194.8 1538.98
C25 192.5 1557.36 C49 194.9 1538.19
C26 192.6 1556.55 C50 195 1537.4
C27 192.7 1555.75 C51 195.1 1536.61
C28 192.8 1554.94 C52 195.2 1535.82
C29 192.9 1554.13 C53 195.3 1535.04
C30 193 1553.33 C54 195.4 1534.25
C31 193.1 1552.52 C55 195.5 1533.47
C32 193.2 1551.72 C56 195.6 1532.68
C33 193.3 1550.92 C57 195.7 1531.9
C34 193.4 1550.12 C58 195.8 1531.12
C35 193.5 1549.32 C59 195.9 1530.33
C36 193.6 1548.51 C60 196 1529.55
C37 193.7 1547.72 C61 196.1 1528.77
C38 193.8 1546.92 C62 196.2 1527.99

شيٽ 3:

ماڊل Connector تبصرو
N نه فلاڻو
A ايف سي / اي پي سي Standard 9/125μm SM Fiber
P ايف سي / پي سي Standard 9/125μm SM Fiber
اپليڪشن

  • اينٽينا ريموٽنگ

  • سيلولر ۽ پي سي ايس نيٽ ورڪ

  • اينالاگ آر ايف لنڪس ٽرانسميشن

  • ٽريڪنگ، ٽيلي ميٽري، ۽ ڪنٽرول

  • Broadband wireless communication

  • DWDM سسٽم

  • وائرليس Backhaul
